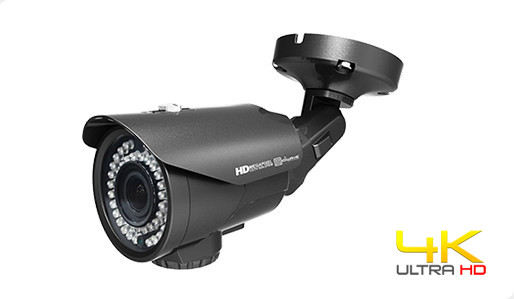

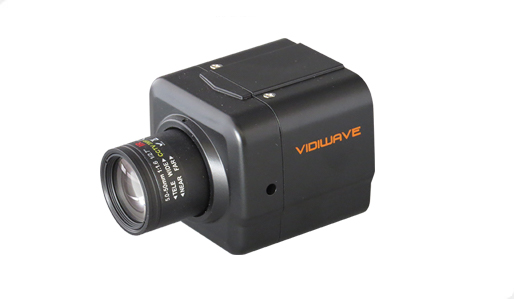

4k Ultra HD Static / Quick Deployment ANPR Camera
Key Features
- Ultra-HD 12 Mega Pixel IP Camera
- 4~10mm and 12~50mm Motorized Mega Pixel ZoomLens options
- Software controlled motorized IR cut filter
- 5-Axis mounting options including: tripod/wall andpole
- Tripod mounting includes Peli-case and WIFI options
- IP68 (International Protection Rating)
- Ultra-high de nition 3000p resolution
- H.264, H265 & MJPEG video streaming

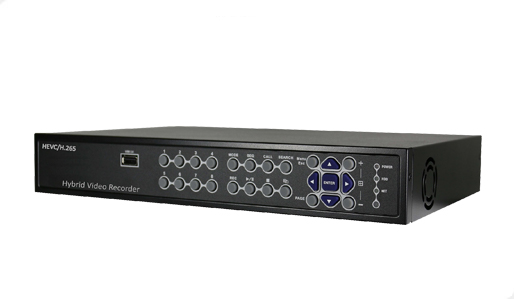

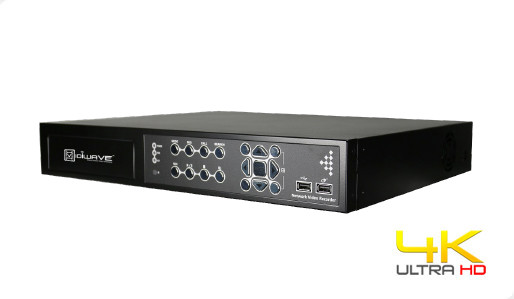

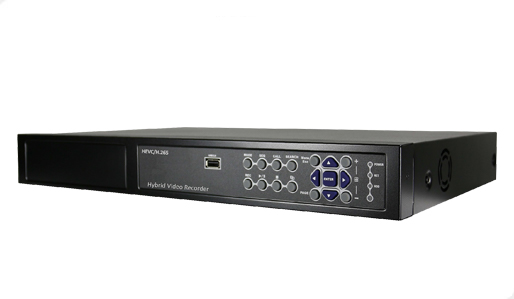

Static Site AHD / NVR Full Hybrid Video Recorder
Key Features
- 64 CH IP-CAM 8MP Turbo NVR
- H.264 High Pro le with outstanding quality
- Hexaplex operation - simultaneous record, live, playback, backup, control, & remote access
- Max. record/playback capabilities: 128Mbps
- Max 320Mbps incoming bandwidth for IP-CAM
- Smart search & playback
- HDMI: 3840x2160; VGA: 2560x1600; CVBS
- Upto 6 internal HDDs (>6TB/HDD) and eSATA/NAS extension
- Digital watermark
- Up to 16/4 alarm inputs/output

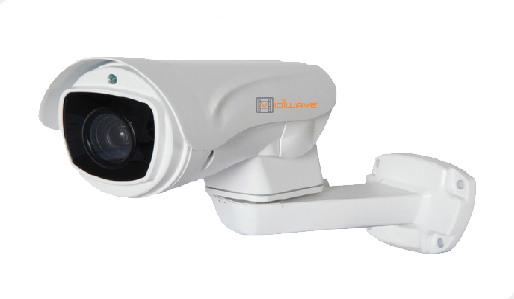

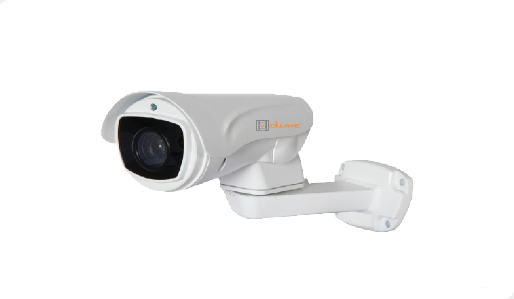

IP66 5MP HD Static / PTZ IP Camera
Key Features
- 5 Mega Pixel IP Camera
- Motorised Zoom Lens 2.7mm~12mm DC Iris
- 4 x Optical Zoom, 5 x Digital Zoom
- Built-in POE - to 802.3at standard
- Software controlled motorized IR cut filter
- PTZ built-in to wall mounting bracket
- IP66 All Metal Housing
- ONVIF and RTSP compliant

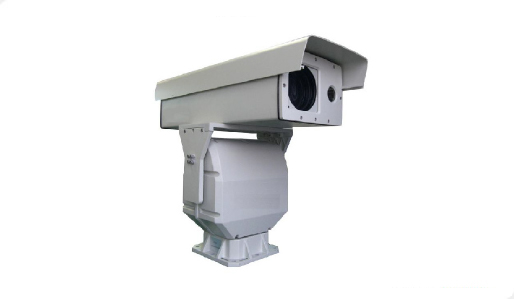

Ultra-Long Range HD PTZ IP Camera
Key Features
- Adaptive laser illuminating system, long distance object detection and wide FOV, works in 0 Lux
- Low light color/monochrome camera, provides continuous day and night surveillance
- Auto white balance, auto gain control, auto exposure control
- 1080P High performance video processor chipset and H.264 video coding, providing HD resolution video images
- Dual-stream function with minimal time delay
- Rich network protocol and good network adaptability
- Built-in Web Server, easy to operate and configure
- Professional housing design, smart shape and low weight, handles high temperature, anticorrosion, water resistance and acid rain
- Precision cut PTZ gearing delivers ultra accurate preset position recovery at full zoom
- IP66 environmental protection

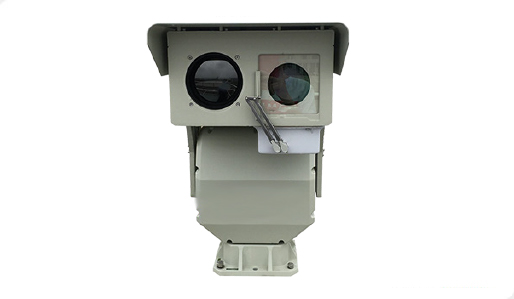

Ultra-Long Range HD PTZ DUAL Sensor (Thermal & HD IP)
Key Features
- Adaptive dual-sensor sensor technology, using HD Video and Thermal Imaging for long range object detection in 0 Lux
- IP Thermal Imaging camera, provides crystal clear night-time surveillance
- 1080P IP camera provides clear high-definition day-time surveillance
- Dual-stream function facilitates minimal time delay between video and thermal modes
- Rich network protocol and good network adaptability
- Built-in Web Server, easy to operate and configure
- Professional housing design, smart shape and low weight, handles high temperature, anticorrosion, water resistance and acid rain
- Precision cut PTZ gearing delivers ultra-accurate preset position recovery at full zoom
- IP66 environmental protection
IP66 4MP HD Static IP Camera
Key Features
- 4 Mega Pixel IP Camera
- 3.6~11mm Megapixel V/F Lens
- Software controlled motorized IR cut filter
- 5-Axis mounting options including: tripod/wall and pole
- Tripod mounting includes Peli-case and WIFI options
- IP66 (International Protection Rating)
- Full HD 1080p resolution
- H.264, H265 & MJPEG video streaming
- ONVIF and RTSP compliant
IP66 5MP HD Static IP Camera
Key Features
- 5 Mega Pixel IP Camera
- 3.6~11mm DC Iris Megapixel Lens
- Software controlled motorized IR cut filter
- 5-Axis mounting options including: tripod/wall and pole
- Tripod mounting includes Peli-case and WIFI options
- IP66 (International Protection Rating)
- Full HD 1080p resolution
- H.264, H265 & MJPEG video streaming
- ONVIF and RTSP compliant

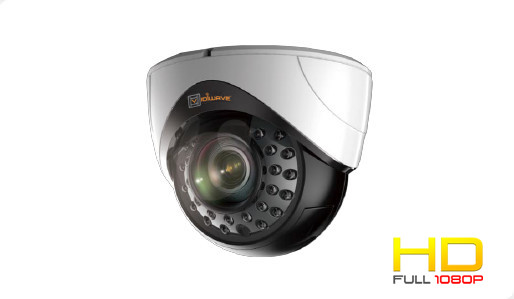

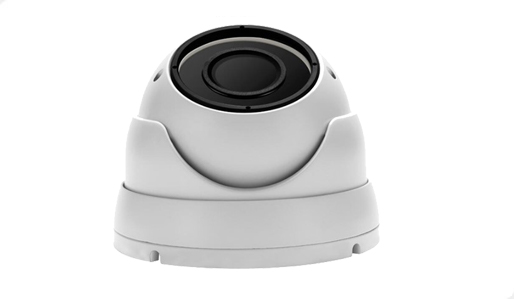

AHD 2.0 Varifocal Lens Indoor IR Dome Camera

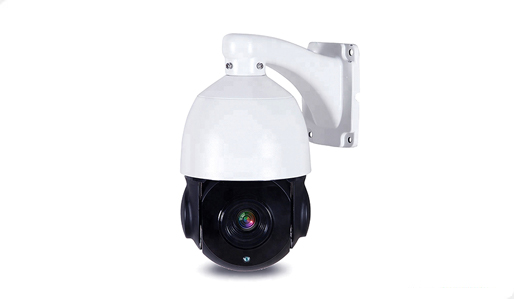

IP66 High Speed PTZ HD 5MP Dome Camera
Key Features
- 5MP HD Image Resolution
- Multiple Interface local video output - AHD / TVI / CVI and CVBS
- TCP/IP remote Video Interface
- Ultra-low illumination Colour (0.1Lux) and Black & White (0.01Lux)
- 30 x Optical zoom lens
- Auto-adjusting motorised infrared LED beam angle to optimise IR illumination to match the zoom lens magnification.
- 3D Digital noise reduction
- Electronic image stabilisation
- Auto focus and automatic exposure control
- ONVIF 2.4 protocol (for remote PTZ control)
- RS-485 (for local PTZ control)
- PTZ - horizontal 400°/sec rotation and vertical 90°/sec
- PTZ presets and guard / patrol mode
- H.265, H264 and M-JPEG image encoding
- RTSP (real-time streaming protocol)
- P2P cloud monitoring
- Built-in lightning protection
- Built-in surge protection
- Built-in anti in-rush wave protection
- IP66 Outdoor weather rating
Vidi-Sync™ Patrol ANPR-DC/DC-PSU
Key Features
- Input between 9 ~ 32V DC
- Programmable voltage thresholds
- Dual output voltages +12V & 19V DC
- Anti Thump output in automotive mode
- Motherboard startup/shutdown control by ON/OFF pulse or USB
- Highly customizable startup/shutdown timers via simple DIP switch config
- Low Power consumption
- HID-USB connection
- Built-in intelligent UPS / DC battery charger
- Built in 12V back-up battery (1200 mAh LiFePO4)
- Intelliget thermostatic fan temperature control
- Programmable relay output
- Programmable Spread Frequency Modulation for reduced EMI
Vidi-Sync™ Patrol ANPR Main Processor
Key Features
- Up to 6 COM ports, includes 2 x RS-232/422/485
- Supports dual display configuration by multiple interface: HDMI/DP
- Supports I2C, SMBus and DIO
- Wide temperature range endurance
- Low voltage 12~24V operation
- SSD Storage
- Ultra-High Performance 15,152 CPU benchmark spec.
- Industrial-grade cooling system
Vidi-Sync™ Patrol Fanless ANPR Main Processor
Key Features
- Up to 6 COM ports, includes 2 x RS-232/422/485
- Supports dual display configuration by multiple interface: HDMI/DP
- Supports I2C, SMBus and DIO
- Wide temperature range endurance
- Low voltage 12~24V operation
- SSD Storage
- Ultra-High Performance 15,152 CPU benchmark spec.
- Industrial-grade cooling system

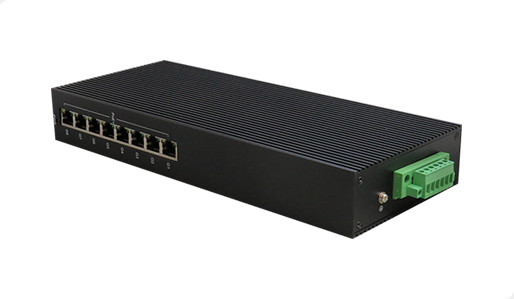

CAM Switch PoE
Key Features
- 802.3af POE / 802.3at POE Plus compatible outputs
- Converts a wide input voltage range to POE levels
- Up to 80 watt power budget
- Auto-configuring 10/100 Ethernet switch
- 4+1 and 8+2 channel models
- Rugged enclosure with adjustable mounting brackets

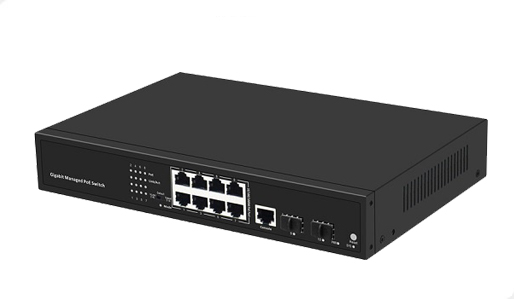

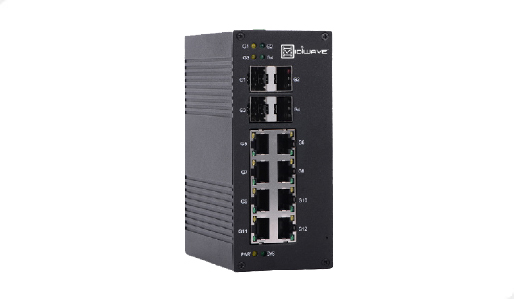

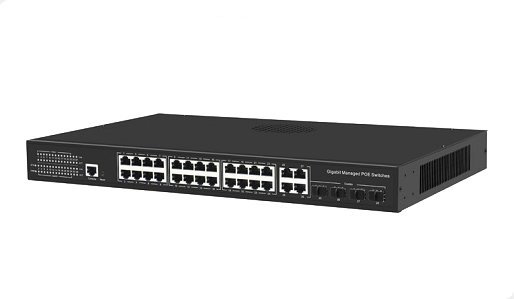

Industrial Managed Switch PoE
The Vidiwave MHUB-8port-4SFP-PoE managed Industrial Ethernet switches are equipped with up to 12 Gigabit Ethernet ports. The built-in redundant Ring (recovery time < 20ms), RSTP/STP can increase system reliability and your network availability. It is an Industrial-grade design with a -40 to +75°C operating temperature and redundant power inputs. The extended hardware reliability is especially suitable for industrial HD Video applications using 4K IP cameras.
Key Features
- Up to 12 Gigabit ports (4 100/1000BaseX SFP ports and 8 10/100/1000BaseTX ports)
- Command Line Interface (CLI) for quickly configuring major managed functions
- Vidiwave’s Ring Protocol (recovery time < 20 ms), RSTP, STP and MSTP for network redundancy
- IGMP snooping and GMRP for filtering multicast traffic
- Support up to 16k byte Jumbo Frame
- Support 8K MAC address
- Max. Number of Available VLANs: 4094
- Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
- DHCP Option 82 for IP address assignment with different policies
- Support port mirroring
- Support traffic control of multicast and broadcast
- QoS and ToS/DiffServ to increase determinism
- Port Trunking for optimum bandwidth utilization
- SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
- SNMPv1/v2c/v3 for different levels of network management
- RMON for efficient network monitoring and proactive capability
IP66 WIMS Access Point - Depot / Garage
IP66 Outdoor version of 3G/WLAN wireless router with a custom embedded Linux OS
Featuring embedded Pro 3G SIM optimized for M2M applications, Hi-Power 5GHz WLAN for Ultra Hi-performance, throughput and distance. Fully functioning 2.4GHz WLAN support for expansion of old legacy WLAN depot networks. WDS mesh topology provides automatic hand over of vehicles between WLAN Access Points
Key Features
- IP66 Rated enclosure
- Zero Config
- Ultra Secure P2P VPN Technology protects 3G / CDMA / WLAN and LAN to (AES-256) Mil-Spec standards
- Built in Embeded Linux OS for robustness and reliability
- 4GB Solid state compact flash memory
- Remote Health Checking of Depot WLAN System via GPRS / 3G and ADSL
- Supports fixed IP addressing
- PUSH Diagnostics / Alerts and Exception Reporting direct to your Maintenance Provider
- Embedded Linux Remote Agent syncs information to a Headend Server to give instant Fault Visability and Reporting
- Supports Full Video Management including Playback / Preview and Backup via GPRS / 3G and WLAN
- Integrated Video Backup to a Secure Web-Based Video Vault with Video Sharing Feature for Evidence Distribution
12dBi Omnidirectional Depot Antenna

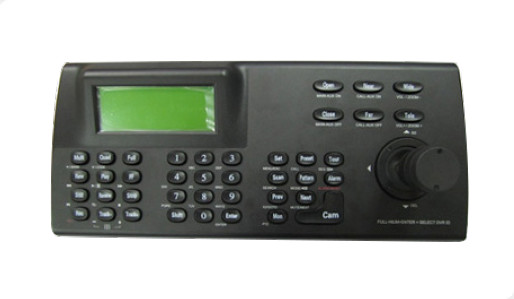

DVR Keyboard
Key Features
- Professional controller of DVR, Video Matrix, Speed Dome, integrated Box Camera and other CCTV products
- Up to 4 keyboards can be connected in one controlling system
- LCD display with error information indication, easy and convenient for operation Long distance control:1200M (RS-485, 0.5mm twisted pair cable)
- Controlling up to 255 devices with di erent address via RS-485 bus
- Controls both AHD and IP PTZ camera variants

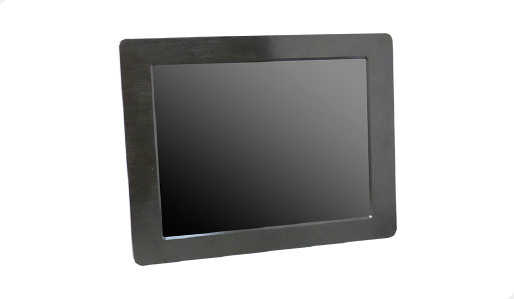

TFT 19" Monitor

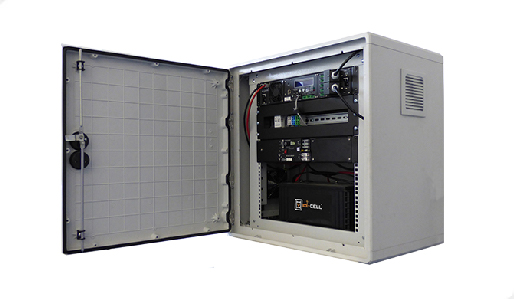

High Temperature Industrial UPS
Key Features
- IP44 or IP55 Protection Class
- Output Power 350, 650, 1100 and 2000 Watts
- Vandal Resistance Rate IK10
- High flexibility through standard and customer specific configurations
- Wide operating temperature range of -40 to 74°C suitable for the most extreme operating environments
- Temperature compensated battery charging protects batteries from overcharging at extreme temperatures, extending the life of the battery
- External communications via RS-232 port and optional Ethernet SNMP interface provides local or remote monitoring and control
- Pole-/Wall Mount Kit (S) or Ground Mount Kit (G) inclusive
- Active ventilation system (IP55 System)
- AC Output distribution on DIN Rail (IP55 System)

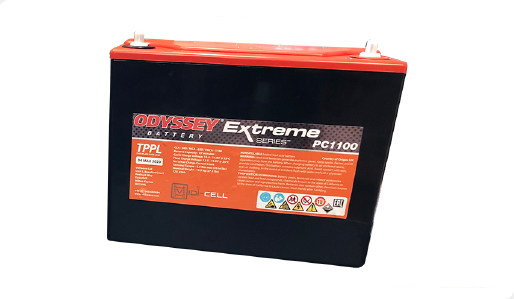

Vidi-Cell UPS Battery
Description
The ODYSSEY Extreme UPS battery features rugged construction and packed tightly with pure lead plates. The non-spillable AGM design ODYSSEY battery protects against the shock and vibration that can quickly destroy other batteries. And the pure lead plates mean more power—twice the overall power and three times the life of conventional batteries—up to 400 cycles at 80% depth of discharge!

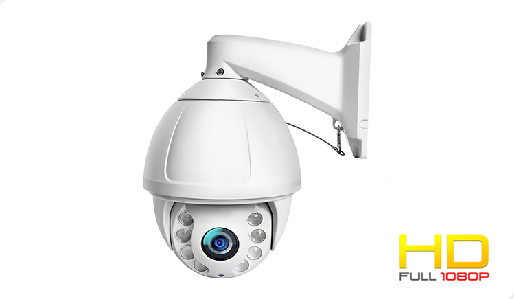

IP66 High Speed PTZ AHD 2MP Dome Camera with 30X Zoom Lens and built-in IR LED’s
- 2MP HD Image Resolution
- Multiple Interface local video output - AHD / TVI / CVI and CVBS
- TCP/IP remote Video Interface
- Ultra-low illumination Colour (0.1Lux) and Black & White (0.01Lux)
- 30 x Optical zoom lens
- Auto-adjusting motorised infrared LED beam angle to optimiseIR illumination to match the zoom lens magnification.
- 3D Digital noise reduction
- Electronic image stabilisation
- Auto focus and automatic exposure control
- ONVIF 2.4 protocol (for remote PTZ control)
- RS-485 (for local PTZ control)
- PTZ - horizontal 400°/sec rotation and vertical 90°/sec
- PTZ presets and guard / patrol mode
- H.265, H264 and M-JPEG image encoding
- RTSP (real-time streaming protocol)
- P2P cloud monitoring
- Built-in lightning protection
- Built-in surge protection
- Built-in anti in-rush wave protection
- IP66 Outdoor weather rating

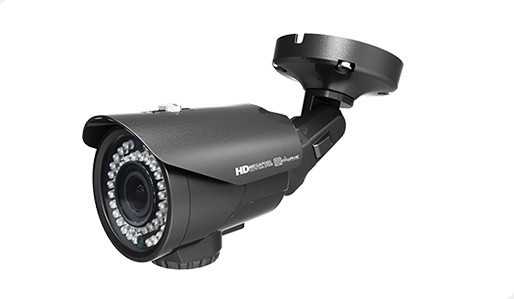

IP66 - 2MP AHD Static Bullet Camera
- 2 Mega Pixel AHD/IP Camera
- Motorised Zoom Lens 2.7mm~12mm DC Iris
- 4 x Optical Zoom, 5 x Digital Zoom
- Built-in POE - to 802.3at standard
- Software controlled motorized IR cut filter
- PTZ built-in to wall mounting bracket
- Tripod mounting includes Peli-case and WIFI options
- IP66 All Metal Housing
- Full HD 1080p resolution
- H.264, H265 & MJPEG video streaming
- ONVIF and RTSP compliant
Vari-Focal Lens Indoor Dome Camera
- 2.0MP progressive scan CMOS
- Supports coaxial HD output, clear and exquisite images
- Min. Illumination
- Color: 0. 01Lux@ (F1.2, AGC ON) 0Lux with IR
- B/W: 0.001Lux@ (F1.2, AGC ON), 0Lux with IR
- Supports IR-CUT switch, CDS external control, day and night surveillance
- Supports OSD menu control for user-defined settings
- Supports for digital WDR
- Adaptive digital noise reduction, 2D-DNR
- Supports functions UTC
- 24PCs F5 IR LED
- Varifocal lens 2.8~12mm
Fixed Lens Indoor Dome Camera
Varifocal Lens IP Indoor Dome Camera
- 2.0MP progressive scan CMOS
- Supports coaxial HD output, clear and exquisite images
- Min. Illumination
- Color: 0. 01Lux@ (F1.2, AGC ON) 0Lux with IR
- B/W: 0.001Lux@ (F1.2, AGC ON), 0Lux with IR
- Supports IR-CUT switch, CDS external control, day and night surveillance
- Supports OSD menu control for user-defined settings
- Supports for digital WDR
- Adaptive digital noise reduction, 2D-DNR
- Supports functions UTC
- 24PCs F5 IR LED
- Varifocal lens 2.8~12mm
IP66 - 2MP HD Static IP Camera
- 2 Mega Pixel IP Camera
- Motorised Zoom Lens 2.7mm~12mm DC Iris
- 4 x Optical Zoom, 5 x Digital Zoom
- Built-in POE - to 802.3at standard
- Software controlled motorized IR cut filter
- PTZ built-in to wall mounting bracket
- Tripod mounting includes Peli-case and WIFI options
- IP66 All Metal Housing
- Full HD 1080p resolution
- H.264, H265 & MJPEG video streaming
- ONVIF and RTSP compliant
IP66 High Speed PTZ HD 5MP Dome Camera with 30X Zoom Lens and built-in IR LED’s
- 5MP HD Image Resolution
- Multiple Interface local video output - AHD / TVI / CVI and CVBS
- TCP/IP remote Video Interface
- Ultra-low illumination Colour (0.1Lux) and Black & White (0.01Lux)
- 30 x Optical zoom lens
- Auto-adjusting motorised infrared LED beam angle to optimise IR illumination to match the zoom lens magnifcation.
- 3D Digital noise reduction
- Electronic image stabilisation
- Auto focus and automatic exposure control
- ONVIF 2.4 protocol (for remote PTZ control)
- RS-485 (for local PTZ control)
- PTZ - horizontal 400°/sec rotation and vertical 90°/sec
- PTZ presets and guard / patrol mode
- H.265, H264 and M-JPEG image encoding
- RTSP (real-time streaming protocol)
- P2P cloud monitoring
- Built-in lightning protection
- Built-in surge protection
- Built-in anti in-rush wave protection
- IP66 Outdoor weather rating
- Supports POE 802.3 af/at

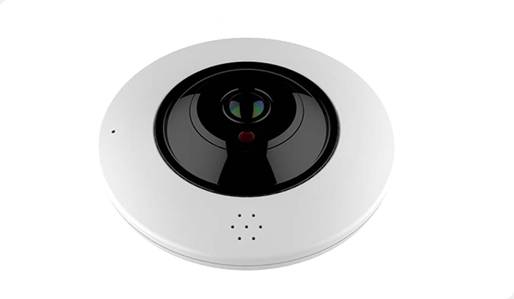

12MP Panoramic 360 degree Fisheye IP Camera - PoE
16 CH H.265 HD Hybrid DVR
- 16-CH IP-CAM and Analog-8MP (Compatible with AHD/TVI/CVI camera) H.265 Hybrid DVR with hexaplex operation - simultaneous record, live, playback, backup, control, & remote access
- H.265/H.264 video compression/decompression with configurable quality
- Max record capabilities: IP-CAM: 480fps@1080p, 480/400fps@720p
- Analog: 80fps@8MP-lite, 192fps@5MP-lite, 240fps@4MP-lite, 320fps@3MP-lite, 240fps@1080p
- 480fps@1080p-lite/720p/960H
- Max. 160Mbps incoming bandwidth for IP-CAM
- Smart search & playback
- HDMI x 1, VGA x 1, Main monitor x 1
- Audio in x 8 / audio out x 1
- eSATA connector for HDD extension
- 1 or 2 internal SATA HDDs (> 6TB/HDD)
- Alarm in x 8 / alarm out x 1
- Ethernet and USB 3G/4G dongle support for remote access through I.E. or remote app, e-mail alarm notification, FTP file storage, remote setup and software upgrade
8 CH H.265 HD Hybrid DVR
- 8-CH IP-CAM and Analog-8MP Hybrid DVR
- Compatible with AHD/TVI/CVI cameras up to 8MP resolution
- H.265/H.264 video compression/decompression with configurable quality
- Hexaplex operation - simultaneous record, live, playback, backup, control, & remote access
- Max. record capabilities: IP-CAM: 240fps@1080p, 480/400fps@720p; Analog: 60fps@8MP-lite, 96fps@5MPlite, 120fps@4MP-lite, 160fps@3MP-lite, 120fps@1080p, 240fps@1080p-lite/720p/960H
- Max 80Mbps incoming bandwidth for IP-CAM
- 4 x Audio in / 1 x Audio out
- Smart search & playback
- HDMI: 3840x2160; VGA: 1920x1080; CVBS
- 2/1 internal HDDs (>6TB/HDD) and eSATA/NAS extension
- Digital watermark
- Up to 8/1 alarm inputs/output
- Ethernet and USB 3G/4G dongle, with dual streaming support
- DVR browser utility
- Free DDNS Server
- Push alarm notification for mobile phones
- Two-way audio capabilities
- Audio broadcasting
- Dynamic electronics maps for CMS
- Remote setup, monitoring, backup, alarm notification, & remote software upgrade
- iPhone/iPad/Mac/Android/MS-Windows remote software
- 1 I.E./Firefox/Chrome/App for multiple DVRs
- Configurable HTTP/SMTP/FTP/Control/Data port
- Support UPnP, P2P, RTSP and QR code
- MS-Windows/iOS/Android SDK for the integration with different applications
CAM Switch PoE 2 Layer Managed Gigabit Switch - 8 PoE Ports with 2 SFP Ports
- Designed for networked IP based surveillance cameras
- 2 x 10/100/1000M SFP ports
- Supports IEEE802.3/IEEE802.3i/IEEE802.3u/IEEE802.3ab/IEEE802.3z
- Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w)
- 8 x Ethernet ports supporting 10/100/1000M adaptive and POE functions
- LED Panel indicators monitoring the switch status
- Fan-less design, convection cooling design, 1U rack mount
- Supports 802.1x port authentication
- Supports AAA authentication
- Supports TACACS+ authentication
- Supports WEB, TELNET, CLI, SSH, SNMP, RMON remote management
- Supports POE power management
- Supports port lightning protection
- Surge: General Mode 6KV
- Differential Mode 4KV
- ESD 15KV
CAM Switch PoE 2 Layer Managed Gigabit Switch - 24 PoE Ports with 4 SFP Ports
- Designed for networked IP based surveillance cameras
- 4 x 10/100/1000M SFP ports
- Supports IEEE802.3/IEEE802.3i/IEEE802.3u/IEEE802.3ab/IEEE802.3z
- Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w)
- 24 x Ethernet ports supporting 10/100/1000M adaptive and POE functions
- LED Panel indicators monitoring the switch status
- Fan-less design, convection cooling design, 1U rack mount
- Supports 802.1x port authentication
- Supports AAA authentication
- Supports TACACS+ authentication
- Supports WEB, TELNET, CLI, SSH, SNMP, RMON remote management
- Supports POE power management
- Supports port lightning protection
- Surge: General Mode 6KV
- Differential Mode 4KV
- ESD 15KV
View all products in this range
