Products - HD Vehicle CCTV
Vidistor
Mini 4CH Hybrid NVR
Vidistor
Compact H.265 - 4CH NVR
Vidistor
Compact H.265 - 8CH NVR
Vidistor
Compact H.265 - 4CH HVR
Vidistor
Compact H.265 - 8CH HVR
Mill Spec
ANPR MPU with POE
Drivers LED
Health Indicator
Provides an instant, simple, visual health diagnostic of your CCTV system
VidiSafe
Autospike
Automotive power distribution unit for use with Vidistor Compact DVR
CAM
Switch PoE
WIMS
Client - Automotive
3G/WLAN Wireless Router with a custom embedded Linux OS
WIMS Lite
Client - Automotive
3G/WLAN Wireless Router
WLAN / 3G / GPS
Roof Antenna
Screw mount GPS/GSM/Wi-Fi combination antenna
Internal Camera
Ultra-small with built-in IR Lighting
1080p AHD
Dome Camera
HD-IP
Camera
1080P AHD
Wing Mirror Camera
1080P AHD
Mini Box Camera
IRD36
Infrared LED Illuminator
DVR Microphone
With Pre-amplifier
Drivers TFT
Monitors
ANPR
Tablet
ANPR
Touchscreen TFT
Click thumbnails to view product detail below
VidistorMINI 4CH
Hybrid NVR
Key Features
- 4-CH 1080p IP-CAM & 4-CH (TVI/)AHD Hybrid Mobile DVR
- H.264 High Profile video compression/decompression with configurable quality
- Hexaplex operation - simultaneous record, live, playback, backup, control, & remote access
- Max. record capabilities: IP-CAM: 120/100fps@1080p/720p, Analog: 60fps@1080p,120/100fps@1080p-lite/720p/960H
- Max. playback capabilities: 60fps@1080p,120/100fps@1080p-lite/720p/960H
- Max. 40Mbps incoming bandwidth for IP-CAM
- Playback search by time or event (alarm, motion, video loss, acceleration, brake, speed, & left/right turn)
- Smart search & playback
- 1 SDXC card with storage up to 2TB
- Digital watermark
- Car speeding pulse input, car engine revolution signal input
- Ethernet and USB 4G/3G dongle support for remote access, with dual streaming support
- Built in G sensor for alarm of acceleration, brake, left/right turn
- Built in GPS to support Google Earth and Google Maps
- Delay Off capability
HD-IP Camera
Key Features
- H.264 Full Frame at HD1080p
- Video Compression: H.264, MJPEG
- Dual Stream
- Ultra Image Quality
- Burnt-in Text, Video Motion Detection Support
- microSD/SDHC card slot
- Comprehensive SDK Support
- Embedded Video Analytics
- ONVIF Support (Profile S, Profile G)

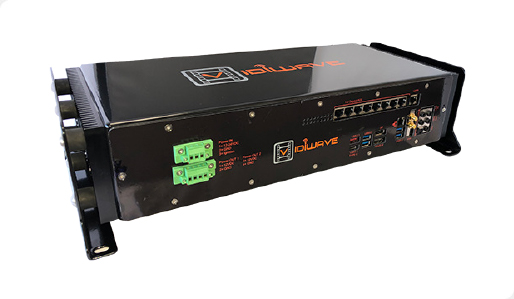

Mill Spec ANPR MPU with build in POR
Key Features
- Intel i7-9700 Main Processor Unit (MPU) with Integrated Z390 chipset
- Pre-installed Windows 10 Professional Operating System
- 7 x Gigabit PoE LAN ports (802.3 af/at) 48V (max 30W per camera)
- Automatic detection of non-PoE Ethernet connections
- Auto-negotiating RJ45 ports supporting Auto-MDI/MDIX
- 1 x Gigabit WAN (uplink) port for full remote management
- Supports dual display configuration by multiple interface: HDMI/DP
- Supports USB3.0 / USB3.1 and USB3.1 Type-C ports
- Ultra-wide operating temperature range
- Industrial Automotive grade 12~24V DC vehicle operation
- Industrial over-voltage and spike protection
- Built-in dual-band WI-FI 802.11 a/b/g/n/ac (2.4 and 5GHz supported)
- Built-in Bluetooth 5
- Built-in 240GB SSD Storage, 16GB DDR4 Memory
- Ultra-high performance 15,152 CPU benchmarked specification.
- Built-in DC-DC UPS with battery back-up
- Industrial grade harsh shut-down protection
- Industrial grade CPU cooling system
- Built-in dead reckoning UDR GPS tracking for harsh urban environments
- IP 54 rated
- EMC / Shock & Vibration Compliance: EN-50155, EN-61373, EN-50121-2-3, e-mark and Mil-STD-202G, Mil-STD-213B, Mil-STD-213a, Mil-STD-201A, Mil-STD-204D and Mil-STD-214A.

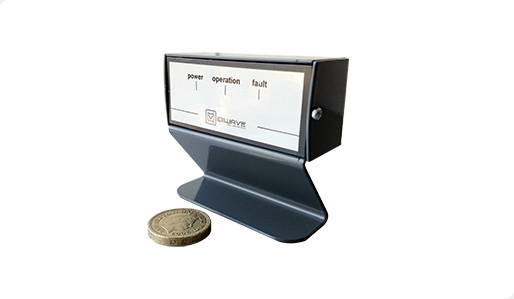

Drivers LED System Health Indicator
The Vidi-Safe LED health indicator is designed to provide a clear, visual confirmation of the complete CCTV system health to
the driver, before he/she takes the vehicle into service.
It is a low-cost alternative to our automated remote vehicle diagnostics package using Vidiwave’s WIMS (Wireless Integrated
Management System) via 3G or WLAN.
This simple compact module allows the driver to have complete peace of mind that the vehicle CCTV is fully operational, providing
protection to staff and passengers throughout the day (and night).
Should an error occur, a fault light will light to alert the driver that the system needs an engineer to investigate the fault log of
the NVR and investigate to repair the system. The log will accurately report the fault in detail to facilitate a quick fix and return
to full operation.
Key Features
- Provides an Instant, simple visual health diagnostics
- Reports the health of all the complete CCTV system
- Checks CCTV systems - Cameras / HDD's / NVR health and DC Power.
- Compact Design - Dashboard and A-pillar mountable
- Rugged construction

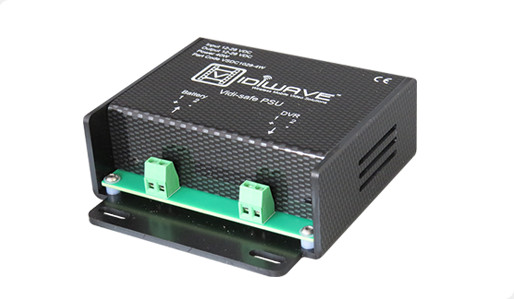

VidiSafe Autospike
Automotive power distribution unit for use with Vidistor Compact DVR
This unique technology features permanent electrical spike monitoring, postive and negative earth fault protection. This product powers and protects CCTV Cameras, WLAN, 3G Modules & CCTV Monitors. This appliance is also EN-55022-06-A & FCC Part 15-B compliant.
Key Features
- PSU/PDU protection for 12V & 25V DC vehicles
- Permanent spike monitoring technology.
- Positive and Negative Earth fault protection.
- Thermal fuse, self-healing technology.
- Full reverse polarity protection.
- Easy-wire installation system.
- Built in cable protection / tie management.
- 12VDC 4 Amp output for ancillary devices.
- Powers, protects and isolates CCTV cameras.
- Powers, protects and isolates WLAN / 3G modules.
- Powers, protects and isolates CCTV monitors.
- EN-55022-06-A & FCC Part 15-B compliant.
CAM Switch PoE
Key Features
- 802.3af POE / 802.3at POE Plus compatible outputs
- Converts a wide input voltage range to POE levels
- Up to 80 watt power budget
- Auto-configuring 10/100 Ethernet switch
- 4+1 and 8+2 channel models
- Rugged enclosure with adjustable mounting brackets
WIMS Client Module - Automotive
3G/WLAN Wireless Router with a custom embedded Linux OS
Key Features
- Zero Config
- Ultra Secure P2P VPN Technology protects 3G / CDMA / WLAN and LAN to (AES-256) Mil-Spec standards
- Built in Embeded Linux OS for robustness and reliability
- 4GB Solid state compact flash memory
- Supports fixed IP multi-port addressing via DHCP sim cards
- PUSH Diagnostics / Alerts and Exception Reporting direct to your Maintenance Provider
- Embedded Linux Remote Agent syncs information to a Headend Server to give instant Fault Visability and Reporting via 3G and WLAN
- Supports Full Video Management including Playback / Preview and Backup via GPRS / 3G and WLAN
- Integrated Video Backup to a Secure Web-Based Video Vault with Video Sharing Feature for secure CCTV Evidence Distribution
WIMS Lite Client Module - Automotive
3G/WLAN Wireless Router
Key Features
- 3G/4G LTE data transmission
- Active auto connect
- Embedded watchdog , Auto recovery
- 2*2 4G/WIFI MIMO antenna
- Integrate 3G/4G LTE,WIFI,GPS feature
- One WAN, Five LAN(1LAN/1 Gbit LAN & 4 LAN/100Mbps) ports, Support VLAN,LAN Ethernet port
- One console port, One USB port,RS232 or RS485 Interface,4 line GPIOs
- SD data storage (Optional)
- One SIM card slot as standard (2 SIM option available on request)
- Remote management platform
- Supports wifi 802.11AC, 1.2Gbit
- Supports 50 WiFi users sharing
- Firmware version: Linux or Openwrt
WLAN / 3G / GPS Roof Antenna
Screw mount GPS/GSM/Wi-Fi combination antenna
Key Features
- Single antenna provides cellular / WLAN + GPS for tracking
- IP67 rated
- High impact ABS plastic for long-life / durability
- Low profile - To reduce gauge increase considerations
- Vehicle wash proof
- Fully isolated from chasis earth faults
- RoHS Compliant

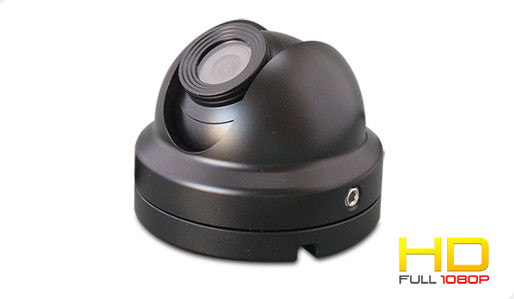

1080p AHD Dome Camera
Key Features
- 1/3” 2.1 Megapixel Sony HD Image Sensor
- Zero motion blur on moving objects
- 2DNR / DNR Level (0~100) Adjustment / SMART NR
- Ultra low light 0.02Lux (Sens-up x30)
- 1080P and 720P HD resolutions available
- IP66 snap lock quick fit connector system
- Vandal resistant design
- Waterproof IP66 housing
Internal Camera
Ultra-small with built in IR Lighting

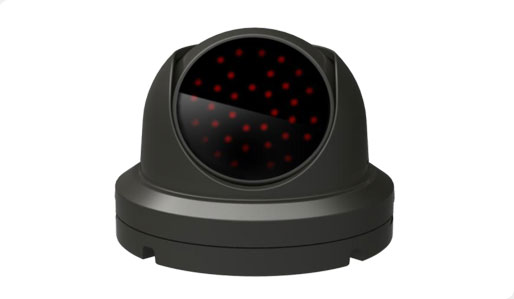

IRD36 Infrared LED Illuminator
The IRD36 is an IP66 waterproof IR LED light for internal and external use on vehicles and rolling stock. It has a wide beam angle to minimise image hotspots and delivers even lighting to the target scene areas.
DVR Microphone
With pre-amplifier
Key Features
- Compact size – Ideal for discrete / non intrusive installation
- Built-in powered Pre-amplifier
- Low-voltage operation
- Pre-wired to utilise existing camera 12VDC power feeds, Ideal for system upgrades
- Adaptive Noise Gate Threshold (to reduce background noise)
- Adaptive Compression Level to Optimise Sound Quality
- Auto limiting feature – Prevents ADC overload
- Adjustable release time
- Low noise and Distortion
- 20kHz Bandwidth (+/- 1 dB)
- Optional IP65 rated version available on request

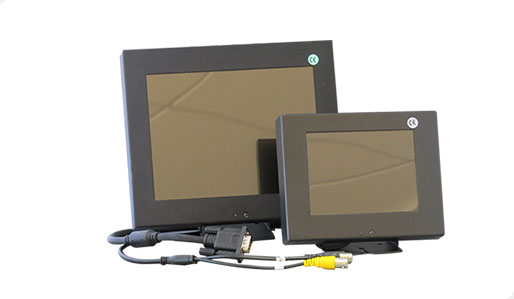

Drivers TFT 5/8 Inch Monitors

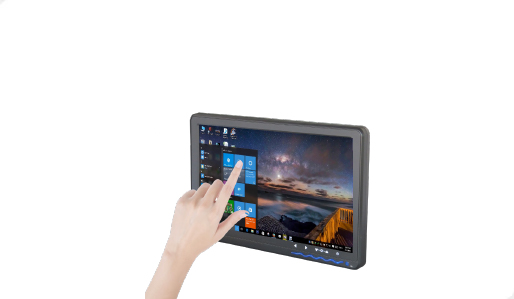

ANPR Tablet
Key Features
- Available in Capitative or Resistive Touch formats
- Widescreen HD display format
- Daylight readable display
- VGA Power and USB Touch control supplied via single mini-cable from PC USB port.
- Ultra-Wide operating temperature for vehicles in extreme climates
- VESA bracket mountable
- Windows 7 / 8 and 10 compatible
- Die-cast aluminium housing for lightness and strength
- 12VDC low power consumption

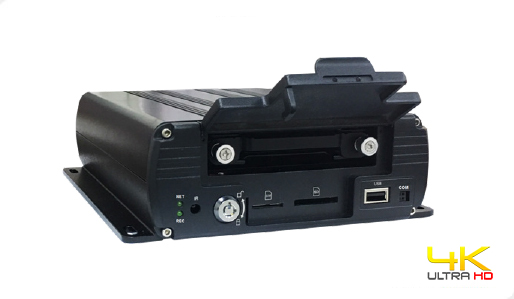

Compact H.265 4CH Mobile NVR
Key Features
- Full HD recording at 1080p using H.265 main profile compression.
- Built-in Power over Ethernet (PoE)
- Hexaplex Operation - Simultaneous: Record / Live / Video back-up / Local control and remote access at the same time.
- Each camera input has a separately definable record frame rate.
- Support for both ONVIF and RTSP protocols.
- Smart-Search function that allows the user to combine multiple search criteria
- HDMI local monitor output supporting 4K display resolution
- VGA local monitor output supporting 2560 x 1600 resolution
- Removable HDD caddy that support HDD and SSD.
- Supports direct audio via RCA and embedded audio streams via IP camera
- Supports 4 local alarm inputs and a relay output
- Built-in GPS to track and record the speed and location of the vehicle
- Built-in G-Sensors to record and report acceleration, braking, left/right turns and collisions.
- User definable delay power off - post ignition off
- Built-in 3G/4G option
- Built-in WiFi option
- Simple on-screen menus to setup NVR
- Optional Media Management Module - GPS based route information and video advertising
- Optional GPS route violation module
Compact H.265 8CH Mobile NVR
Key Features
- Full HD recording at 1080p using H.265 main profile compression.
- Built-in Power over Ethernet (PoE)
- Hexaplex Operation - Simultaneous: Record / Live / Video back-up / Local control and remote access at the same time.
- Each camera input has a separately definable record frame rate.
- Support for both ONVIF and RTSP protocols.
- Smart-Search function that allows the user to combine multiple search criteria
- HDMI local monitor output supporting 4K display resolution
- VGA local monitor output supporting 2560 x 1600 resolution
- Removable HDD caddy that support HDD and SSD.
- Supports direct audio via RCA and embedded audio streams via IP camera
- Supports 4 local alarm inputs and a relay output
- Built-in GPS to track and record the speed and location of the vehicle
- Built-in G-Sensors to record and report acceleration, braking, left/right turns and collisions.
- User definable delay power off - post ignition off
- Built-in 3G/4G option
- Built-in WiFi option
- Simple on-screen menus to setup NVR
- Optional Media Management Module - GPS based route information and video advertising
- Optional GPS route violation module

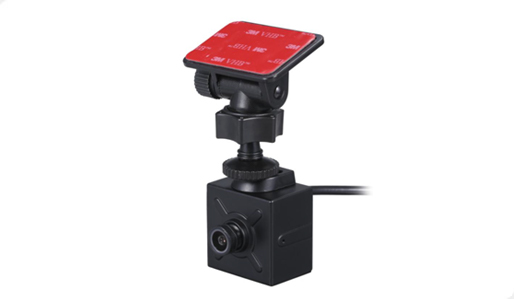

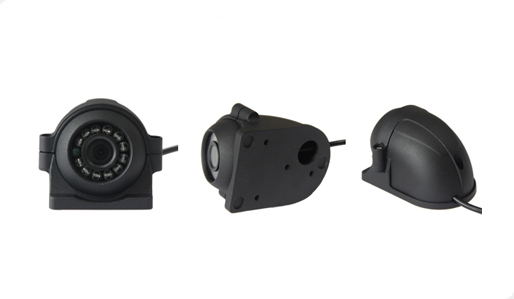

1080p AHD Mini Box Camera
1080P AHD
Wing Mirror Camera
Compact H.265 4CH Mobile HVR
Key Features
- Full HD recording at 1080p using H.265 main profile compression.
- Built-in Power over Ethernet (PoE)
- Hexaplex Operation - Simultaneous: Record / Live / Video back-up / Local control and remote access at the same time.
- Each camera input has a separately definable record frame rate.
- Support for both ONVIF and RTSP protocols.
- Smart-Search function that allows the user to combine multiple search criteria
- HDMI local monitor output supporting 4K display resolution
- VGA local monitor output supporting 2560 x 1600 resolution
- Removable HDD caddy that support HDD and SSD.
- Supports direct audio via RCA and embedded audio streams via IP camera
- Supports 4 local alarm inputs and a relay output
- Built-in GPS to track and record the speed and location of the vehicle
- Built-in G-Sensors to record and report acceleration, braking, left/right turns and collisions.
- User definable delay power off - post ignition off
- Built-in 3G/4G option
- Built-in WiFi option
- Simple on-screen menus to setup NVR
- Optional Media Management Module - GPS based route information and video advertising
- Optional GPS route violation module
Compact H.265 8CH Mobile HVR
Key Features
- Full HD recording at 1080p using H.265 main profile compression.
- Built-in Power over Ethernet (PoE)
- Hexaplex Operation - Simultaneous: Record / Live / Video back-up / Local control and remote access at the same time.
- Each camera input has a separately definable record frame rate.
- Support for both ONVIF and RTSP protocols.
- Smart-Search function that allows the user to combine multiple search criteria
- HDMI local monitor output supporting 4K display resolution
- VGA local monitor output supporting 2560 x 1600 resolution
- Removable HDD caddy that support HDD and SSD.
- Supports direct audio via RCA and embedded audio streams via IP camera
- Supports 4 local alarm inputs and a relay output
- Built-in GPS to track and record the speed and location of the vehicle
- Built-in G-Sensors to record and report acceleration, braking, left/right turns and collisions.
- User definable delay power off - post ignition off
- Built-in 3G/4G option
- Built-in WiFi option
- Simple on-screen menus to setup NVR
- Optional Media Management Module - GPS based route information and video advertising
- Optional GPS route violation module
ANPR Touchscreen TFT
Key Features
- Available in Capitative or Resistive Touch formats
- Widescreen HD display format
- Daylight readable display
- VGA Power and USB Touch control supplied via single mini-cable from PC USB port.
- Ultra-Wide operating temperature for vehicles in ex- treme climates
- VESA bracket mountable
- Windows 7 / 8 and 10 compatible
- Die-cast aluminium housing for lightness and strength
- 12VDC low power consumption
View all products in this range
